Main features:
- P and S wave generation
- Compact design
- High energy of pulse
- Ideal repetition of impacts
- Hammers of different weights
See the effectiveness and simplicity of the source
Detailed Description

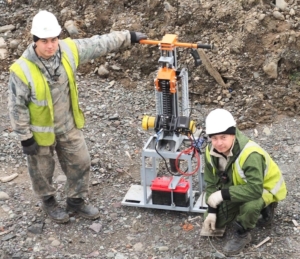

AWD-33 is a variant of seismic source of the “weight drop” type. The striking mass (hammer) is accelerated with the aid of massive stretching springs that are armed by means of an electric winch powered by a car battery (65–180 A/h). The minimum period of operation of the source is 3 s.
The source AWD-33 is mounted on a compact lightweight frame equipped with reliable wheel blocks. The delivery package of the source includes one hammer: 10, 20 or 33 kg. Hammers of another weights can be supplied additionally. The design of device allows hammer’s fast replacing in the field. The source can be used on a rugged terrain. The total weight of the source with a battery pack and a 33 kg hammer is less than 100 kg. The energy of a single impact reaches 600 J.
It is possible to develop fastenings for a car, ATV, cross-country vehicle or any other transport.
The set includes:
- Source AWD-33
- Wired control console
- Technical manual
Can be acquired additionally:
- Additional hammer
- Sealed (gel) battery 90 A*h
- Automatic battery charger
- Trigger switch
- Titanium alloy plate for hammering
| Type of waves | pressure |
| Minimum response time | 3 s |
| Weight (with additional hammer and battery) | < 100 kg |
| The energy of a single impact | 600 J |
| Weight of additional hammer | 10/20/33 кг |
| Frame material | steel |
